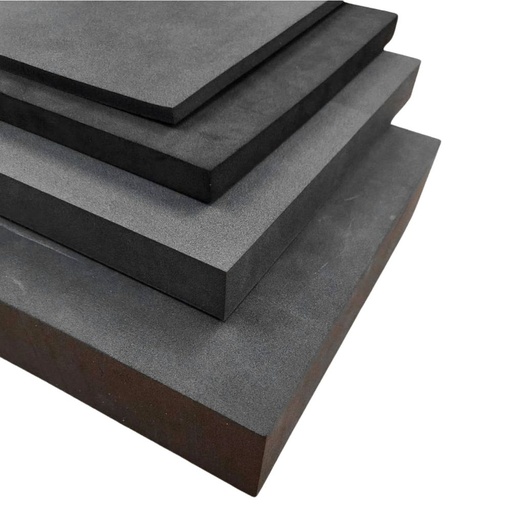

EVA75 High Density Closed Cell Foam Sheet CHARCOAL

Ethylene Vinyl Acetate (EVA) Minicell is the copolymer of ethylene and vinyl acetate. It is a polymer that approaches elastomeric materials in softness and flexibility, yet can be processed like other thermoplastics. The material has good clarity and gloss, low-temperature toughness, stress-crack resistance, hot-melt adhesive waterproof properties, and resistance to UV radiation. EVA is generally softer and more elastic than its PE equivalent making it better for rebound and shock deflecting. EVA foam's greater recovery characteristics also make it an excellent and cost-effective substitute for rubber in most applications. EVA foams have a variety of applications where sturdiness is of utmost importance. Examples include splints, cervical collars, exercise mats, shoe soles, and orthotic supports.

Features:

• Ultra smooth surface cell structure
• Lightweight
• Water resistant
• Air tight
• Shatterproof
• Insulate against heat and cold
• Non-dusting
• Floats on water
• Superb strength and tear resistance
• High shock absorption
• Flexibility
• Impervious to mildew, mold, rot, and bacteria
• Superior petrol, oils, chemical and grease resistance

Specifications:

• Range: Closed-Cell EVA
• Cross-Linked: Chemically
• Grade: EVA75
• Type: Premium
• Density: 70-80kg/m³
• Firmness: Medium/Firm
• Sheet Size: 2000x1000mm approx
• Sheet Area: 2.0sqm
• Colour: CHARCOAL
• Conversion Process: bandsaw cutting, die cutting, waterjet cutting, CNC routing, compression molding, heat/adhesive lamination, skiving.

Available Thicknesses:

• 3mm
• 6mm
• 12mm
• 25mm
• 50mm

Other grades, thicknesses and colours may be available on request. Minimum quantities and extra lead time may apply.

Downloads & Technical Resources:

Closed Cell Flexible Foam Technical Brochure 2021 RE
