BEA 380 Stapler Spare Parts

BEA 380 Stapler Spare Parts | Genuine BEA Replacement Parts - Australia Delivery

This combination does not exist.

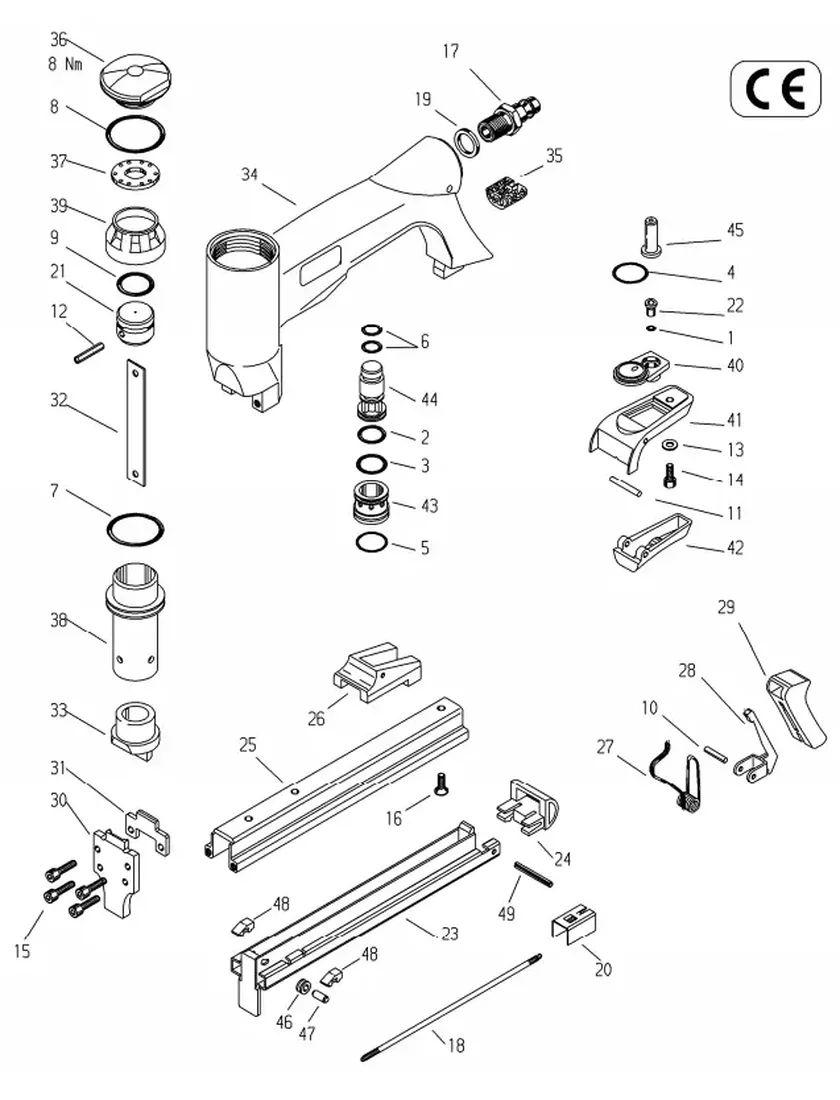

Spare Parts to suit BEA 380/16-420 (Article Number 12000063) made in Germany.

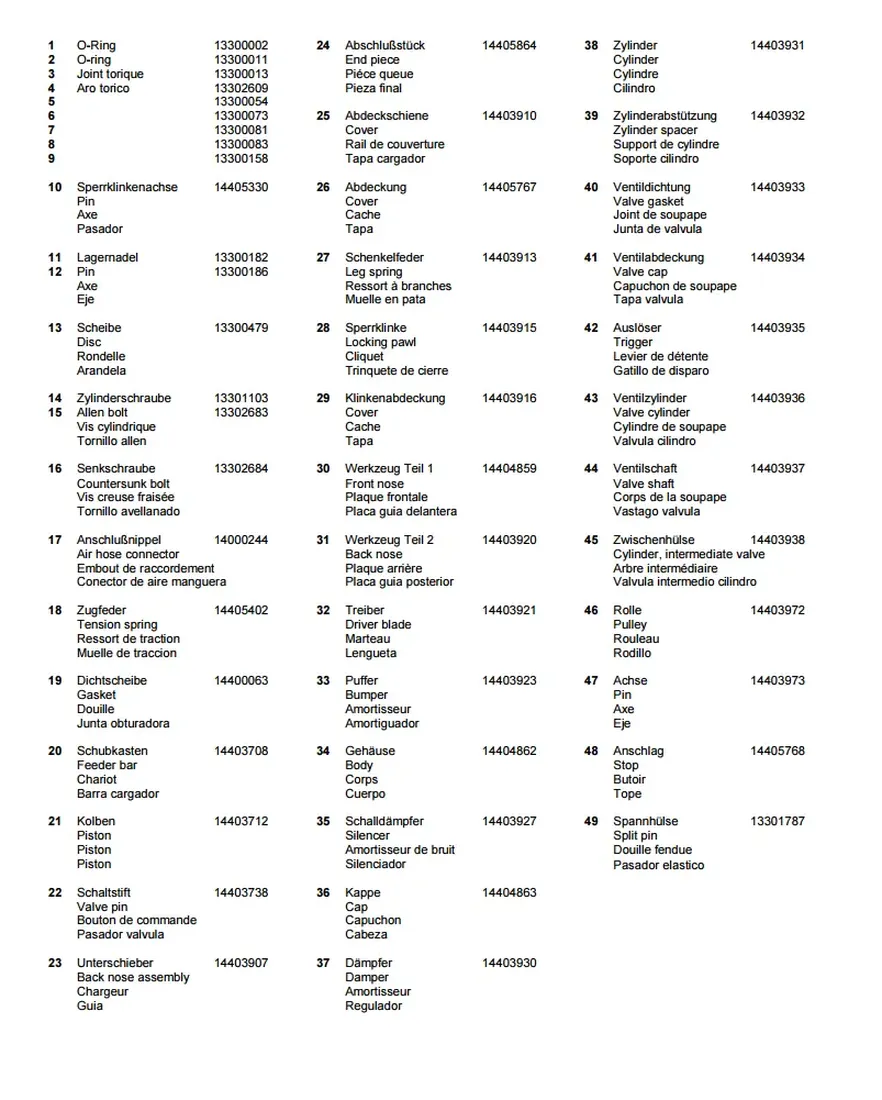

No.	BEA Part Number	Part Description
1	13300002	O-Ring 2.57x1.80 N70 TIN 3771
2	13300011	O-Ring 12.42x1.80 N70 TIN 3771
3	13300013	O-Ring 15.60x1.80 N70 TIN 3771
4	13302609	O-Ring 16.56x1.78
5	13300054	O-Ring 16.00x1.25 N70 TIN 3771
6	13300073	O-Ring 7.59x2.62 N70 TIN 3771
7	13300081	O-Ring 26.64x2.62 N70 TIN 3771
8	13300083	O-Ring 31.42x2.62 N70 TIN 3771
9	13300158	O-Ring 17.12x2.62 N70+PTFE
10	14405330	Pin
11	13300182	Pin
12	13300186	Pin
13	13300479	Disc (Washer)
14	13301103	Allen Bolt
15	13302683	Allen Bolt
16	13302684	Countersunk Bolt
17	14000244	Air Hose Connector
18	14405402	Tension Spring
19	14400063	Gasket
20	14403708	Feeder Bar
21	14403712	Piston
22	14403738	Valve Pin
23	14403907	Back Nose Assembly
24	14405864	End Piece
25	14403910	Cover
26	14405767	Cover
27	14403913	Leg Spring
28	14403915	Locking Pawl
29	14403916	Cover
30	14404859	Front Nose
31	14403920	Back Nose
32	14403921	Driver Blade

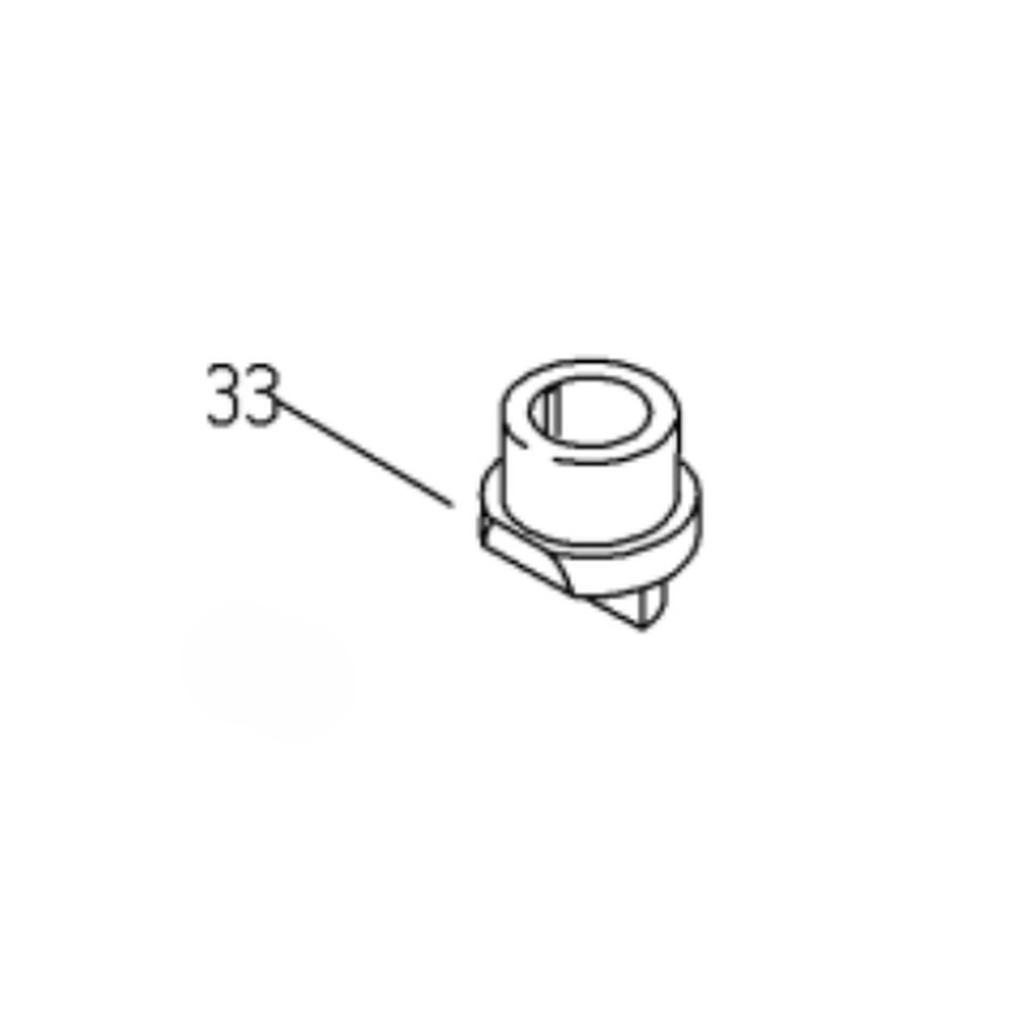

33	14403923	Bumper
34	14404862	Body
35	14403927	Silencer
36	14404863	Cap
37	14403930	Damper
38	14403931	Cylinder
39	14403932	Cylinder Spacer Ring
40	14403933	Valve Gasket
41	14403934	Valve Cap
42	14403935	Trigger
43	14403936	Valve Cylinder
44	14403937	Valve Shaft
45	14403938	Cylinder, Intermediate Valve
46	14403972	Pulley
47	14403973	Pin
48	14405768	Stop
49	13301787	Split Pin
